Microscan迈思肯ID–20 OEM 读码器

Microscan迈思肯ID–20 OEM 读码器
产品说明
产品特点
技术参数

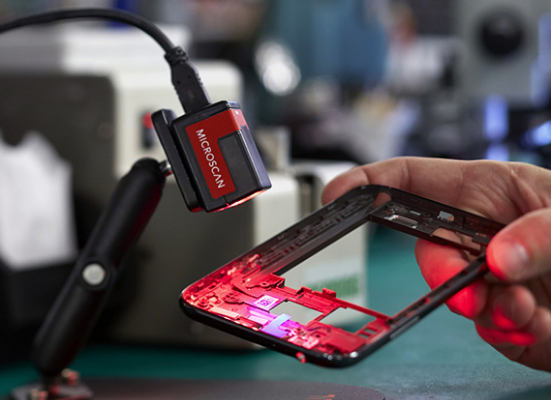

Microscan迈思肯ID–20 OEM 读码器介绍

ID-20是*上小的功能条码扫描器,完集成了条码成像仪,是一种微型、简单 且合理的解决方案,适用于嵌入式设计或在制品追踪,为原始设备制造商和工程师提 供了一组好的价值和性能选项。 作为同类产品中的扫描器,ID-20是一种单电缆解决方案,它采用单根USB线进 行2种通信(USB2.0高速和通过USB连接以太网)并且供电,实现即插即用式集成。微 型已演变为微型,并且极其易用。




Microscan迈思肯ID–20 OEM 读码器特性

Microscan迈思肯ID–20 OEM 读码器可解如下码

标准型: 高对比度1D

增强型:高对比度1D/2D

X-Mode: 所有1D/2D, 包括低对比度、损坏或打印 质量差的条码

Microscan迈思肯ID–20 OEM 读码器特点

极其紧凑 (19.5 mm x 28.7mm x 33.9 mm)

高速USB 2.0接口,通过 USB连接以太网

X-Mode 好解码算法

集成了目标和读取/通过指 示灯

可编程的红色或白色LED 照明灯

基于浏览器的设置界面 WebLink



Microscan迈思肯ID–20 OEM 读码器技术参数


ID-20ID-30ID-40
解码Standard (High-Contrast 1D)
Plus (High-Contrast 1D/2D)
X-Mode (Poor or Damaged)
Standard (High-Contrast 1D)
Plus (High-Contrast 1D/2D)
X-Mode (Poor or Damaged + DPM)
Standard (High-Contrast 1D)
Plus (High-Contrast 1D/2D)
X-Mode (Poor or Damaged + DPM)
速度Standard (up to 10 FPS)Standard (up to 10 FPS) or High-Speed (max. sensor FPS)Standard (up to 10 FPS) or High-Speed (max. sensor FPS)
精度Standard- or High-DensityStandard- or High-DensityStandard- or High-Density
传感器 (CMOS)WVGA 0.34MP (752x480)
Global Shutter, up to 60 FPS
SXGA 1.2MP (1280x960)
Global Shutter, up to 42 FPS
QSXGA 5.0MP (2592x1944)
Rolling Shutter, up to 5 FPS
WVGA 0.34MP (752x480)
Global Shutter, up to 60 FPS
SXGA 1.2MP (1280x960)
Global Shutter, up to 42 FPS
QSXGA 5.0MP (2592x1944)
Rolling Shutter, up to 5 FPS
WVGA 0.34MP (752x480)
Global Shutter, up to 60 FPS
SXGA 1.2MP (1280x960)
Global Shutter, up to 42 FPS
QSXGA 5.0MP (2592x1944)
Rolling Shutter, up to 5 FPS
曝光50 - 100,000
Default: 2,500 µs
50 - 100,000
Default: 2,500 µs
50 - 100,000
Default: 2,500 µs
颜色QSXGA onlyQSXGA onlyQSXGA only
焦距Fixed (50-300 mm)Fixed (50-300 mm)
Liquid Lens Autofocus
Fixed (50-300 mm)
Liquid Lens Autofocus
通信方式USB 2.0 High Speed, Ethernet over USB / HIDRS-232, USB 2.0 High Speed, Ethernet over USB / HIDRS-232, Ethernet TCP/IP, EtherNet/IP™, PROFINET®,
Power over Ethernet (PoE)
连接器Micro-B USBHigh-Density 15-Pin D-SubM12 12-Pin (Power), M12 8-Pin (Ethernet)
线缆N/A0.91 mN/A
照明Inner LEDs: 4 White/4 Red
Outer LEDs: N/A
Inner LEDs: 4 White/4 Red
Outer LEDs: 8 High-Intensity White or Red (Optional)
Outer LEDs: 8 High-Intensity
White or Red (Optional)
数字 I/ON/A3 in/3 out
Trigger Input: 5-28V rated (0.16mA @ 5VDC); New Master: 5 to 28V rated (0.16mA @ 5VDC); Default: 3.3V rated (0mA @ 3.3V)
Outputs (1, 2, 3): 5V TTL-compa tible, can sink 10mA and source 10mA
3 in/3 out, Optoisolated
Trigger Input; New Master:
Bi-directional, opto-isolated, 4.5-28V rated (10mA @ 28VDC)
Outputs (1, 2, 3): Bi-directional, opto-isolated, 1-28V rated (ICE < 100mA at 24VDC, current limited by user)
电气参数5 VDC ± 5 %,
350 mA at 5 VDC (typ.)
5 VDC ± 5 %,
600 mA at 5 VDC (typ.)
4.75-30 VDC, 200 mV p-p max
ripple, 150 mA at 24 VDC (typ.)
尺寸24 mm x 34 mm x 39 mm25 mm x 45 mm x 38 mm25 mm x 45 mm x 45 mm
重量26 g46 g (包括线缆)68 g
外壳IP40,塑料IP54, 铝IP65, 铝
指示Target Pattern,
Good Read Green Flash
Target Pattern,
Good Read Green Flash,
Performance LEDs
Target Pattern,
Good Read Green Flash,
Performance LEDs

光源
Type: High output LEDs Output
Wavelength: 625 nm (Inner Red) nominal / 617 nm (Outer Red) nominal
Operating Life: 50,000 hours @ 25° C

环境
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -50° to 75° C (-58° to 167° F)
Humidity: 5% to 95% (non-condensing)

排放
EN 55022:2010 Class A Limits


Microscan迈思肯ID–20 OEM 读码器应用案例


生命科学和临床仪器

实验室自动化和配药

电子装配和测试

自动服务和售票
