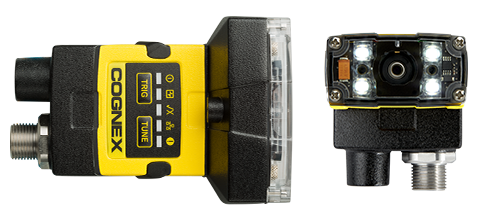

cognex康耐视DATAMAN 370 固定式工业读码器介绍
DataMan 370 系列固定式读码器可解决具挑战性的直接部件标识 (DPM) 和基于标签的代码应用问题。DataMan 370 的计算能力是同类传统读码器的两倍,即使应用涉及多个代码和符号,它也能提供更快的解码速度,从而提高每个设备的吞吐量。
cognex康耐视DATAMAN 370 固定式工业读码器特性
2 倍读码性能和能力
DataMan 370 系列条码阅读器采用先进的解码算法进行了优化,包括新式一维/二维自动识别技术,确保为一维条码和二维码提供快速且优异的读取率。DataMan 370 条码阅读器的多核处理器使其能够并行运行这些算法和流程,使其拥有同类高性能读码器两倍的性能和能力。
DataMan 370条码阅读器使用高动态范围(HDR)成像技术获得单一的图像比传统传感器更详细的16倍。它在球范围内提高图像质量和对比,导致更大的景深效果和改善低对比度的处理代码。
提供了无与伦比的灵活性
DataMan 370 系列条码阅读器模块化设计同样的照明、镜头和其他通信选项, DataMan 370条码阅读器提供大的灵活性和易用性。新的高性能集成度(HPIT)选项提供了无与伦比的照明能力,消除外部照明的需要。
简单的设置和操作
DataMan 370 系列条码阅读器设置工具软件简化了安装和操作Cognex条形码阅读器。它捕获用户评论和轨道的图像实时读取结果的历史。智能自动和应用助手指导用户轻松快速优化复杂的参数。设置工具还提供了过程控制指标和绩效反馈。
cognex康耐视DATAMAN 370 固定式工业读码器技术参数
DataMan 370 Series Specifications | ||
---|---|---|
DataMan 374 | DataMan 375 | |
Algorithms | 1DMax, 2DMax, Hotbars, PowerGrid, 1D/2D Auto-Discrimination | |
Image Sensor | 1/1.8" CMOS | 2/3” CMOS |
Image Sensor Properties | Diagonal 8.9 mm; 3.45 μm square pixels | Diagonal 11.1 mm; 3.45 μm square pixels |
Image Sensor Resolution | 2048 x 1536 | 2448 x 2048 |
Electronic Shutter Speed | Min. exposure: 15 μs Max. exposure: 1000 μs with internal illumination/10000 μs with external illumination | |
Max Acquisition | Up to 80 Hz | Up to 55 Hz |
Lens Options | Liquid lens 10 mm, 16 mm, 24 mm; C-mount 12 mm, 16 mm, 25 mm, 35 mm, 40 mm | |
Trigger and Tune Buttons | Yes; Quick Setup Intelligent Tuning | |
Aimer | Optional | |
Discrete Inputs | 2 fixed + (*) opto-isolated | |
Discrete Outputs | 2 fixed + (*) opto-isolated | |
*Other I/O Points | 2 user-configurable | |
Status Outputs | Beeper, 5 multifunctional LEDs, 10 LED bar array, 360-degree indicator | |
Lighting | Integrated LEDs, red, blue or IR; diffuse, polarized, high powered integrated light (HPIL), high powered integrated torch (HPIT), various controllable external light options | Integrated LEDs, red, blue or IR; diffuse, polarized, high powered integrated torch (HPIT), various controllable external light options |
Communications | Ethernet and serial | |
Protocols | RS-232, TCP/IP, PROFINET, EtherNet/IP, SLMP, Modbus TCP, NTP, SFTP, FTP, MRS, Java Scripting enabled for custom protocols | |
Power Consumption | 24 VDC ±10%, 1.5 A maximum (HPIL/HPIT1) 24 VDC, 250 mA maximum (reader) Supplied by LPS or NEC class 2 only | |
Weight | 165 g | |
Dimensions | 73 mm x 54 mm x 42 mm; 113 mm x 91 mm x 75mm (with HPIT) | |
Operating Temperature | 0 °C–57 °C (32 °F–134.6 °F)2 | |
Storage Temperature | -20 °C–80 °C (-4 °F–176 °F) | |
Operating and Storage Humidity | < 95% non-condensing | |
Protection | IP67 with cables and appropriate lens cover attached | |
RoHS Certified | Yes | |
Approvals (CE, UL, FCC) | Yes |
1 HPIL denotes one of the DM360-HPIL-RE, DM360-HPIL-RE-P, DMLT-HPIL-RE or DMLT-HPIL-RE-P accessories. HPIT denotes one of the DMLT-HPIT-RE-W, DMLT-HPIT-RE-S, DMLT-HPIT-RE-N, DMLT-HPIT-WHI-W, DMLT-HPIT-WHI-S, DMLT-HPIT-WHI-N accessories.
2 In situations where the operating temperature exceeds 40 °C, an external heat sink is required.
DataMan 370系列应用
凭借好的读取性能和成像机制,DataMan 370 可轻松解决有宽视野和大景深覆盖需求的各种制造和物流应用问题。
高速代码读取
识别
难以读取的代码
组件可追溯性
多代码、多符号应用
多面扫描通道
