迈思肯Microscan HAWK MV-4000 智能相机

迈思肯Microscan HAWK MV-4000 智能相机
产品说明
产品特点
技术参数

迈思肯Microscan HAWK MV-4000 智能相机介绍

HAWK MV-4000坚固的外壳内装有令人惊叹的处理能力和优异的灵活性。 这款智能相机采用FPGA，将上一代的处理能力提高了数倍，实现了实时触发响应。拥有先进的算法，HAWK MV-4000可以成为各行业实现代码阅读，代码验证，检查，引导定位，测量或各种组合功能的理想工具。

HAWK MV-4000的以图像为中心的用户界面和拖放式编程使设置变得简单。 普通的操作员或技术人员会喜欢直观的AutoVISION用户界面（UI），可以使用读取，验证和视觉工具随时读取。机器视觉方面的专家将可以访问另一个名为FrontRunner的界面，以获得HAWK MV-4000的部潜力。

拥有几乎达到基于PC系统速度的处理能力，这个智能相机可以真正实现以一当十。 IVision的工程师们把它称为基于PC的相机和市场上普通的智能相机之间的“黄金中心”。 使用HAWK MV-4000，不需要外部处理即可达到每分钟4,000至14,000个零件的检查率。


迈思肯Microscan HAWK MV-4000 智能相机特性

迈思肯Microscan HAWK MV-4000 智能相机型号表
Part NumberDescription
8011-0000-0100HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV SENSOR
8011-0000-0101HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV
8011-0000-0102HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS
8011-0000-0103HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VERIF/OCV
8011-0000-0104HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS+VERIF/OCV
1.3 MP Mono
8012-0000-0100HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV SENSOR
8012-0000-0101HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV
8012-0000-0102HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS
8012-0000-0103HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VERIF/OCV
8012-0000-0104HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS+VERIF/OCV
2.0 MP Mono
8013-0000-0100HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV SENSOR
8013-0000-0101HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV
8013-0000-0102HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS
8013-0000-0103HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VERIF/OCV
8013-0000-0104HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS+VERIF/OCV
5.0 MP Mono
8014-0000-0100HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV SENSOR
8014-0000-0101HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV
8014-0000-0102HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS
8014-0000-0103HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VERIF/OCV
8014-0000-0104HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS+VERIF/OCV
0.3 MP Color
8015-0000-0100HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV SENSOR
8015-0000-0101HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV
8015-0000-0102HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS
8015-0000-0103HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VERIF/OCV
8015-0000-0104HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS+VERIF/OCV
1.3 MP Color
8016-0000-0100HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV SENSOR
8016-0000-0101HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV
8016-0000-0102HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS
8016-0000-0103HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VERIF/OCV
8016-0000-0104HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS+VERIF/OCV
2.0 MP Color
8017-0000-0100HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV SENSOR
8017-0000-0101HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV
8017-0000-0102HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS
8017-0000-0103HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VERIF/OCV
8017-0000-0104HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS+VERIF/OCV
5.0 MP Color
8018-0000-0100HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV SENSOR
8018-0000-0101HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV
8018-0000-0102HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS
8018-0000-0103HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VERIF/OCV
8018-0000-0104HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS+VERIF/OCV




HAWK 4000 LENSES AND LENS CAPS
Standard Resolution for 2/3" Sensors - (General Inspection, Reading, Some Verification)
98-9000167-01LENS, C-MOUNT, 6MM, STANDARD RES, 2/3" SENSOR
98-9000168-01LENS, C-MOUNT, 9MM, STANDARD RES, 2/3" SENSOR
98-9000169-01LENS, C-MOUNT, 12.5MM, STANDARD RES, 2/3" SENSOR
98-9000170-01LENS, C-MOUNT, 16MM, STANDARD RES, 2/3" SENSOR
98-9000171-01LENS, C-MOUNT, 25MM, STANDARD RES, 2/3" SENSOR
98-9000172-01LENS, C-MOUNT, 35MM, STANDARD RES, 2/3" SENSOR
High Resolution for 2/3" Sensors - (Gauging, Verification)
98-9000192-01LENS, C-MOUNT, 6MM, HIGH RES, 2/3" SENSOR
98-9000165-01LENS, C-MOUNT, 8MM, HIGH RES, 2/3" SENSOR
98-9000166-01LENS, C-MOUNT, 12MM, HIGH RES, 2/3" SENSOR
98-9000154-01LENS, C-MOUNT, 16MM, HIGH RES, 2/3" SENSOR
98-9000164-01LENS, C-MOUNT, 25MM, HIGH RES, 2/3" SENSOR
98-9000163-01LENS, C-MOUNT, 35MM, HIGH RES, 2/3" SENSOR
High Resolution for 1" Sensors - (All applications. Required for 1" 5 MP Sensor)
98-9000174-01LENS, C-MOUNT, 12.5MM, HIGH RES, 1" SENSOR
98-9000175-01LENS, C-MOUNT, 16MM, HIGH RES, 1" SENSOR
98-9000176-01LENS, C-MOUNT, 25MM, HIGH RES, 1" SENSOR
98-9000177-01LENS, C-MOUNT, 35MM, HIGH RES, 1" SENSOR
C-Mount Liquid Lens
98-9000179-01LENS, LIQUID, C-MOUNT, F2.8/16MM, 2/3" SENSOR, I2C INTERFACE
98-9000178-01LENS, LIQUID, C-MOUNT, F4/25MM, 2/3" SENSOR, I2C INTERFACE
Lens Accessories
98-9000155-01IP67 LENS COVER FOR HAWK 4000, 50MM LENGTH
98-9000156-01IP67 LENS COVER HAWK 4000, 70MM LENGTH
98-CO206Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm




HAWK 4000 CABLES, LIGHT CONTROL CABLE AND POWER SUPPLY
HAWK 4000 X-CODE Ethernet Port Cables
61-9000134-01CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 1 METER
61-9000134-02CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 3 METER
61-9000134-03CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 5 METER
HAWK 4000 VGA/USB Port Connector Cables
61-9000143-01 CABLE, HAWK 4000 M12 TO USB FEMALE, 1 METER
61-9000147-01 CABLE, HAWK 4000 M12 TO VGA & USB, 1 METER
HAWK 4000 Digital IO Port Connector Cables
61-9000132-01CABLE, ADAPTER, HAWK 4000 TO ACCESSORY CABLES/POWER SUPPLY (Supplied with camera)
61-9000151-01CABLE, HAWK 4000 M12 TO FLYING LEADS, 3 METER (NO ADAPTOR NEEDED)
QX-1 Interface Cables and Accessories
61-000162-02 QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 1 METER
61-000148-02 QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 3 METER
98-000103-02 QX-1 INTERFACE DEVICE
99-000020-02 QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 meter
99-000020-01 QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 meter
20-610024-01 Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
SMART LIGHT CONTROL CABLES
61-9000135-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, POWER, 1 METER
61-9000136-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, ON/OFF, 1 METER
61-9000137-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, STROBE, 1 METER
61-000204-01 CABLE, QX-1 TO SMART LIGHT, CONTINUOUS POWER
61-000207-01CABLE, QX-1 TO SMART LIGHT, ON/OFF
61-000218-01* CABLE, QX-1 TO SMART LIGHT, STROBE
Power Supply
97-000012-01 Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket




HAWK 4000 AND SMART LIGHT MOUNTS
Standard Mounts
TBDUNIVERSAL MOUNT, HAWK 4000
98-9000054-01 APG MOUNT, HAWK 4000 (REQUIRES UNIVERSAL MOUNT)
Smart Light/HAWK 4000 Mounting Kits
98-9000120-01KIT, BRACKET, MAX 300 TO HAWK 4000
98-9000121-01KIT, BRACKET, DOAL TO HAWK 4000
98-9000122-01KIT, BRACKET, RING 60/70 TO HAWK 4000
98-9000123-01KIT, BRACKET, RING 100 TO HAWK 4000
98-9000137-01KIT, SMART SERIES PHARMALITE, ARCHERFISH




LICENSING
HAWK 4000 License Upgrades
LIC-0700-003*LICENSE,MACHINE VISION,AUTOVISION
LIC-0700-006*LICENSE,MACHINE VISION,VISIONSCAPE
LIC-0700-009*LICENSE,MACHINE VISION,VERIFICATION/OCV
LIC-0700-011*LICENSE,MACHINE VISION,AUTOVISION SENSOR
LIC-0700-325*LICENSE,MACHINE VISION,MACHINE VISION UNLOCK




Camera Kits - with License, Lens, IP Cover and Mount
0.3 MP, Standard Lens
8211-1090-0102HAWK MV-4000-03, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
8111-1160-0102HAWK MV-4000-03, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
1.3 MP, Standard Lens
8112-1120-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 12.5MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
8112-1250-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
1.3 MP, High Res Lens
8212-2160-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
8212-2250-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
8212-2350-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
2.0 MP, Standard Lens
8113-1160-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
8113-1350-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
2.0 MP, High Res Lens
8213-2160-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
8213-2250-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
8213-2350-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
2.0 Color, Standard Lens
8117-1090-0102HAWK MV-4000-20C, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
8117-1160-0102HAWK MV-4000-20C, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
8117-1350-0102HAWK MV-4000-20C, AV+VS, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
5.0 MP, 1" Lens
8014-3160-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 16MM 1" LENS, NO COVER, UNIVERSAL MOUNT
8214-3250-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 25MM 1" LENS, IP COVER, UNIVERSAL MOUNT
8214-3350-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 35MM 1" LENS, IP COVER, UNIVERSAL MOUNT



迈思肯Microscan HAWK MV-4000 智能相机技术参数

型号

HAWK MV-4000-03

HAWK MV-4000-03C

HAWK MV-4000-13

HAWK MV-4000-13C

HAWK MV-4000-20

HAWK MV-4000-20C

HAWK MV-4000-50

HAWK MV-4000-50C


传感器

品牌和型号

安森美半导体 – Python 系列 (NOIP1SN 或 NOIP1SE)

安森美半导体 – Python 系列 (NOIP1SN 或 NOIP1SE)

类型

CMOS

芯片尺寸

1/4”-Type

1/2”-Type

2/3”-Type

1”-Type

格式

黑白

彩色

黑白

彩色

黑白

彩色

黑白

彩色

分辨率 (H x V)

640 x 480

1280 x 1024

1920 x 1200

2592 x 2048

有效帧率

高 240 FPS

高 120 FPS

高 75 FPS

高 32 FPS

高 42 FPS

高 20 FPS

高 21 FPS

高8.5 FPS

像素尺寸 (H x V)

4.8 μm x 4.8 μm

增益范围

0 至 19.4 dB

快门速度

50 μsec 至 4 sec

触发器响应

外部触发器输出延迟 = 10μs。 抖动= 1 - 2μs。


处理器，内存及存储

处理器

双核

内存

2GB RAM

存储

32GB


接口

网络

千兆以太网

HMI

VGA 和 USB 2.0 (连接键盘和鼠标)

数字 I/O

3个光耦输入（带增量旋转编码器支持），1个专用光耦触发，3个外部选通输出

其他

Varioptic Caspian 自动对焦镜头专用接口


机械，电气，环保

镜头类型

C-Mount

连接器

M12 8针以太网插座; M12 12针插座，用于电源，数字I / O和LED照明强度控制; M12 12针插头用于VGA和USB

重量

460 g

能量消耗

450 mA @ 24VDC 或 10.8W (一般情况)



迈思肯Microscan HAWK MV-4000 智能相机附件表



This section contains information about system components as well as information to help you connect the HAWK MV-4000 Smart Camera. Specific information describes connectors, adapters, cables, pinouts, and signals.
HAWK MV-4000 Smart Cameras (All cameras ship with an adapter cable.)
0.3 Megapixel Mono
8011-0000-0100HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION Sensor
8011-0000-0101HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION
8011-0000-0102HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape
8011-0000-0103HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Verification / OCV
8011-0000-0104HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape + Verification / OCV
1.3 Megapixel Mono
8012-0000-0100HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION Sensor
8012-0000-0101HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION
8012-0000-0102HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape
8012-0000-0103HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Verification / OCV
8012-0000-0104HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape + Verification / OCV
2.0 Megapixel Mono
8013-0000-0100HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION Sensor
8013-0000-0101HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION
8013-0000-0102HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape
8013-0000-0103HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Verification / OCV
8013-0000-0104HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape + Verification / OCV
5.0 Megapixel Mono
8014-0000-0100HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION Sensor
8014-0000-0101HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION
8014-0000-0102HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape
8014-0000-0103HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Verification / OCV
8014-0000-0104HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape + Verification / OCV
0.3 Megapixel Color
8015-0000-0100HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION Sensor
8015-0000-0101HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION
8015-0000-0102HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape
8015-0000-0103HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Verification / OCV
8015-0000-0104HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape + Verification / OCV
1.3 Megapixel Color
8016-0000-0100HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION Sensor
8016-0000-0101HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION
8016-0000-0102HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape
8016-0000-0103HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Verification / OCV
8016-0000-0104HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape + Verification / OCV
2.0 Megapixel Color
8017-0000-0100HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION Sensor
8017-0000-0101HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION
8017-0000-0102HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape
8017-0000-0103HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Verification / OCV
8017-0000-0104HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape + Verification / OCV
5.0 Megapixel Color
8018-0000-0100HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION Sensor
8018-0000-0101HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION
8018-0000-0102HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape
8018-0000-0103HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Verification / OCV
8018-0000-0104HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape + Verification / OCV
HAWK MV-4000 Lenses and Lens Caps
Standard Resolution for 2/3" Sensors (General Inspection, Reading, Some Verification)
98-9000167-01Lens, C-Mount, 6 mm, Standard Resolution, 2/3" Sensor
98-9000168-01Lens, C-Mount, 9 mm, Standard Resolution, 2/3" Sensor
98-9000169-01Lens, C-Mount, 12.5 mm, Standard Resolution, 2/3" Sensor
98-9000170-01Lens, C-Mount, 16 mm, Standard Resolution, 2/3" Sensor
98-9000171-01Lens, C-Mount, 25 mm, Standard Resolution, 2/3" Sensor
98-9000172-01Lens, C-Mount, 35 mm, Standard Resolution, 2/3" Sensor
High Resolution for 2/3" Sensors (Gauging, Verification)
98-9000192-01Lens, C-Mount, 6 mm, High Resolution, 2/3" Sensor
98-9000165-01Lens, C-Mount, 8 mm, High Resolution, 2/3" Sensor
98-9000166-01Lens, C-Mount, 12 mm, High Resolution, 2/3" Sensor
98-9000154-01Lens, C-Mount, 16 mm, High Resolution, 2/3" Sensor
98-9000164-01Lens, C-Mount, 25 mm, High Resolution, 2/3" Sensor
98-9000163-01Lens, C-Mount, 35 mm, High Resolution, 2/3" Sensor
High Resolution for 1" Sensors (All applications. Required for 1" 5 Megapixel Sensor)
98-9000174-01Lens, C-Mount, 12.5 mm, High Resolution, 1" Sensor
98-9000175-01Lens, C-Mount, 16 mm, High Resolution, 1" Sensor
98-9000176-01Lens, C-Mount, 25 mm, High Resolution, 1" Sensor
98-9000177-01Lens, C-Mount, 35 mm, High Resolution, 1" Sensor
C-Mount Liquid Lens
98-9000179-01Lens, Liquid, C-Mount, F2.8/16 mm, 2/3" Sensor, I2C Interface
98-9000178-01Lens, Liquid, C-Mount, F4/25 mm, 2/3" Sensor, I2C Interface
Lens Accessories
98-9000155-01IP67 Lens Cover for HAWK MV-4000, 50 mm Length
98-9000156-01IP67 Lens Cover HAWK MV-4000, 70 mm Length
98-CO206Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm
HAWK MV-4000 Cables, Smart Series Illuminator Control Cable, and Power Supply
HAWK MV-4000 X-CODE Ethernet Port Cables
61-9000134-01Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 1 m
61-9000134-02Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 3 m
61-9000134-03Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 5 m
HAWK MV-4000 VGA / USB Port Connector Cables
61-9000143-01Cable, HAWK MV-4000 M12 to USB Socket, 1 m
61-9000147-01Cable, HAWK MV-4000 M12 to VGA and USB, 1 m
HAWK MV-4000 Digital I/O Port Connector Cables
61-9000132-01Cable, Adapter, HAWK MV-4000 to Accessory Cables / Power Supply (Supplied with camera)
61-9000151-01Cable, HAWK MV-4000 M12 to Flying Leads, 3 m (No Adapter Required)
QX-1 Interface Cables and Accessories
61-000162-02QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 1 m
61-000148-02QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 3 m
98-000103-02QX-1 Interface Device
99-000020-02QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 m
99-000020-01QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 m
20-610024-01Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
Smart Series Illuminator Control Cables
61-9000135-01Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Power, 1 m
61-9000137-01Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Strobe, 1 m
61-000204-01Cable, QX-1 to Smart Series Illuminator, Continuous Power
61-000218-01*Cable, QX-1 to Smart Series Illuminator, Strobe
Power Supply
97-000012-01Power Supply, 100-240VAC, +24VDC, M12 12-pi

相关产品

欧姆龙迈思肯MS-3 小型条码扫描器

欧姆龙迈思肯MS-3 小型条码扫描器
欧姆龙迈思肯QX-830 工业用激光扫描器

欧姆龙迈思肯QX-830 工业用激光扫描器
Microscan迈思肯MobileHawk手持式DPM读码器

Microscan迈思肯MobileHawk手持式DPM读码器
Microscan迈思肯MS-9高速条码扫描器

Microscan迈思肯MS-9高速条码扫描器

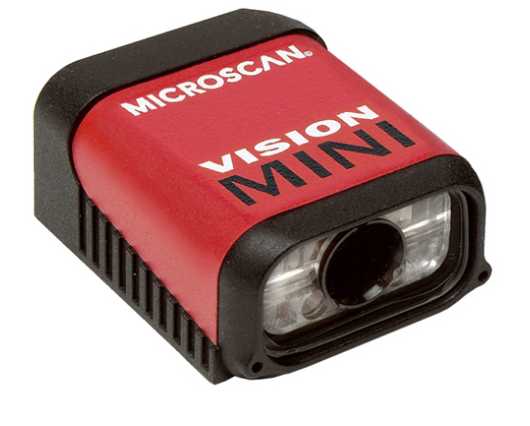

迈思肯Microscan Vision MINI迷你智能相机

迈思肯Microscan Vision MINI迷你智能相机
迈思肯MS-4X,microscan MS-4X固定式扫描器

迈思肯MS-4X,microscan MS-4X固定式扫描器

相关文章

新闻动态

销售动态

行业资讯

经验分享

联系我们

咨询热线：400-928-2622, 18912780652, 13776119687

邮箱：yjdtmj@163.com

传真：0512-68700433

地址：江苏省苏州市相城区相城大道666号中翔大厦29层29002

热门推荐

新大陆采集器

新大陆扫描枪

新大陆扫描模块

工业读码器

Copyright©2011-2021 rakindaaidc.cn 苏州远景达 版权所 增值电信业务经营许可证：苏ICP备12045750号-6 网站地图
友情链接加QQ2851138201
